Equipment

Rigs for every operation

Wallis drilling supplies, maintains and operates a fleet of over 55 rigs in Australia and selected International markets.

Our rigs are modern, efficient and well-serviced by our team of mechanics and engineers to ensure maximum reliability and minimum down time.

Our fleet includes Air Core, Reverse Circulation, and Blast Hole rigs for all applications and situations. We also build light Air Core rigs to our own specifications.

Air Core

WALLIS Mantis 80.2 AC

Air Core

RIGS

D022, D025, D035, D048, D049, D054, D055

SPECIFICATIONS

192cfm/175psi compressor, 2,100kgf Pullback, 1720Nm Rotation torque

RIG CARRIER

Toyota Landcruiser 79 series 6x6 (1VD-FTV 4.5L V8 Turbo Diesel)

FEATURES
  • Dump mast
  • On board water tank
  • Dual breakout system
  • Stand up rod bin
  • Height adjustable sample system
  • Rod gate with rotation interlock
  • Control panel FOPS structure
SUPPORT TRUCKS
  • Isuzu 4x4 – Water, Fuel, rods, tooling, and spares

WALLIS Mantis 80.1 AC

Air Core

RIGS

D008, D036 & D044

SPECIFICATIONS

192cfm/175psi compressor, 2,100kgf Pullback, 1720Nm Rotation torque

RIG CARRIER

Toyota Landcruiser 79 series 6x6 (1HD-FTV 4.2L 6-cylinder Turbo Diesel)

FEATURES
  • Dump mast
  • On board water tank
  • Dual breakout system
  • Stand up rod bin
  • Height adjustable sample system
  • Rod gate with rotation interlock
SUPPORT TRUCKS

As required by drilling project

WALLIS Mantis 100 AC

Air Core

RIGS

D005, D007 & D012

SPECIFICATIONS

235cfm/175psi compressor, 2,100kgf Pullback, 1720Nm Rotation torque

RIG CARRIER

Mitsubishi 4x4

FEATURES
  • Dump mast
  • On board water tank
  • Dual breakout system
  • Stand up rod bin
  • Height adjustable sample system
  • Rod gate with rotation interlock
SUPPORT TRUCKS

Isuzu 4x4 – Water, Fuel, rods, tooling, and spares

WALLIS Mantis 101 AC

Air Core

RIGS

D009

SPECIFICATIONS

230cfm/200psi compressor, 3,170kgf Pullback, 2820Nm Rotation torque

RIG CARRIER

Morooka MST 1500

FEATURES
  • Acoustic enclosure
  • Dump mast
  • On board water tank
  • Dual breakout system
  • Stand up rod bin
  • Height adjustable sample system
  • Rod gate with rotation interlock
SUPPORT TRUCKS

As required by drilling project

WALLIS MT60AC

Air Core

RIGS

D017

SPECIFICATIONS

120cfm/165psi compressor, 3,000kgf Pullback, 900Nm Rotation torque

RIG CARRIER

Caterpillar 432E 4x4

FEATURES
  • ROPS/FOPS cab
  • Telemast
  • Rod Carousel
  • Automated rod handling
  • Auto rod trip
  • Dual breakout system
  • Fire Suppression
  • On board water tank
  • Rod gate with interlocks
SUPPORT EQUIPMENT

Toyota Landcruiser 4x4 – Water, fuel, tooling and spares

WALLIS MF60AC

Air Core

RIGS

D018, D030

SPECIFICATIONS

120cfm/165psi compressor, 3,000kgf Pullback, 900Nm Rotation torque

RIG CARRIER

Melo Multifarmer MF40.7

FEATURES
  • Telemast
  • Rod Carousel
  • Automated rod handling, rig up/down, semi-automated drilling
  • Auto rod trip
  • Dual breakout system
  • FOP structure
  • Fire Suppression
  • On board water tank
  • Programable isolation system
  • Rod gate with interlocks
SUPPORT EQUIPEMENT

Toyota Landcruiser 4x4 – Water, fuel, tooling and spares

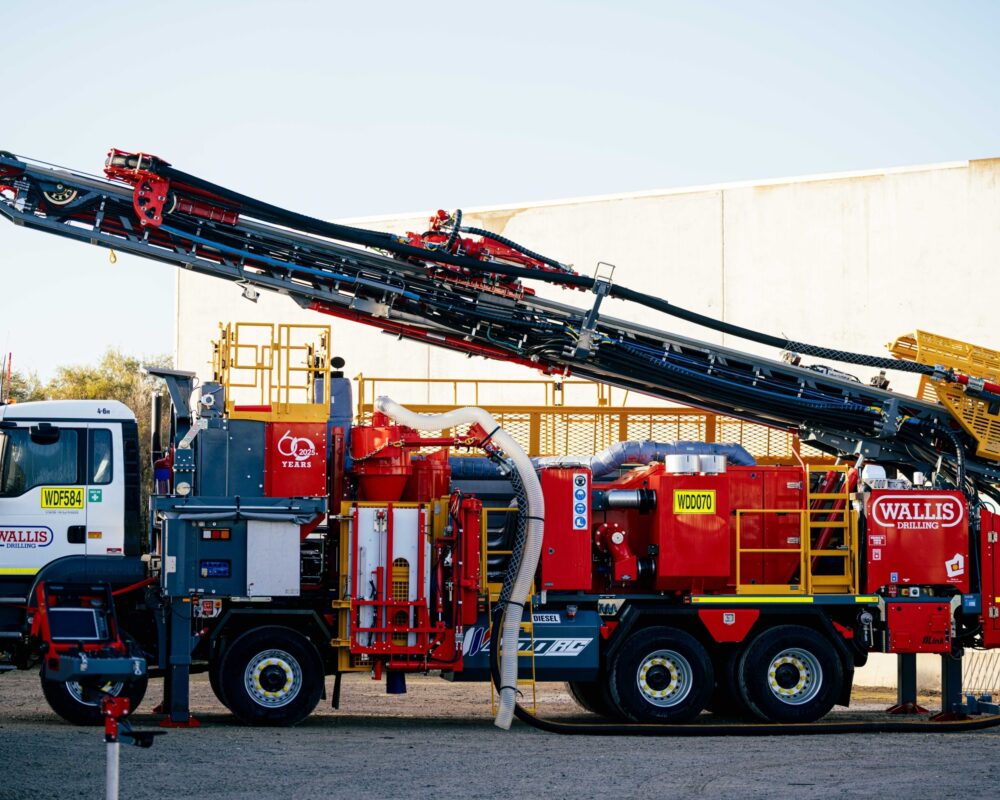

WALLIS 300RC

Reverse Circulation/Air Core

Rigs

D001, D004, D021, D026, D027, D047, D059, D060

Specifications

1260cfm/500psi compressor, 12,500kgf Pullback, 7500Nm Rotation torque

Rig Carrier

Man 6x6

Features
  • Wireless remote operation
  • Automated rod handling, rig up/down, semi-automated drilling
  • Electronic compressor control system, operator control over compressor pressure and volume
  • Acoustic enclosure
  • Dual breakout system
  • Fire Suppression
  • Programable isolation system
Support Trucks
  • MAN 6x6 – Water, Mud tank and mixing, tooling and spares
  • MAN 4x4 Dual Cab – Crew, Fuel, Water, Access platform and Tools

WALLIS Mantis 75 AC

Air Core

RIGS

D015

SPECIFICATIONS

160cfm/150psi compressor, 1,800kgf Pullback, 1150Nm Rotation torque

RIG CARRIER

Toyota Landcruiser 79 series 4x4 (1HZ 4.2L 6-cylinder Diesel)

FEATURES
  • Dual breakout system
  • Rod gate with rotation interlock
SUPPORT TRUCKS

As required by drilling project

WALLIS Mantis 75 AC

Air Core

RIGS

D028

SPECIFICATIONS

320cfm/175psi compressor, 1,800kgf Pullback, 1150Nm Rotation torque

RIG CARRIER

Isuzu 4x4

FEATURES
  • Dual breakout system
  • Stand up rod bin
  • Height adjustable sample system
  • Rod gate with rotation interlock
SUPPORT TRUCKS

Isuzu 4x4 – Water, Fuel, rods, tooling, and spares

WALLIS Mantis 500

Diamond Core, Rotary, Air Core

RIGS

D011 & D034

SPECIFICATIONS

12,600kgf Pullback, 5900Nm Rotation torque, Rotation speed 1000rpm

RIG CARRIER

Morooka MST 1500

FEATURES
  • Acoustic enclosure
  • Rod spinner
  • Dual breakout system
  • Fire Suppression
  • Rod gate with interlocks
  • Winch overwind
  • Wireline/overshot slowdown system
SUPPORT TRUCKS

As required by drilling project

Reverse Circulation

WALLIS 300RC

Reverse Circulation/Air Core

Rigs

D001, D004, D021, D026, D027, D047, D059, D060

Specifications

1260cfm/500psi compressor, 12,500kgf Pullback, 7500Nm Rotation torque

Rig Carrier

Man 6x6

Features
  • Wireless remote operation
  • Automated rod handling, rig up/down, semi-automated drilling
  • Electronic compressor control system, operator control over compressor pressure and volume
  • Acoustic enclosure
  • Dual breakout system
  • Fire Suppression
  • Programable isolation system
Support Trucks
  • MAN 6x6 – Water, Mud tank and mixing, tooling and spares
  • MAN 4x4 Dual Cab – Crew, Fuel, Water, Access platform and Tools

Schramm T685WS

Reverse Circulation

Rigs

D003, D010, D032, D040, D045, D050, D051, D052, D053, D057

Specifications

1350cfm/500psi compressor, 27,000kgf Pullback, 11,000Nm Rotation torque

Rig Carrier

Man 8x8

Features
  • Sandvik DA554 rod loader with radio remote
  • Dual breakout system
  • Acoustic enclosure
  • Rod restraint system
  • Fire Suppression system
  • Programable isolation system
Support Trucks
  • MAN 8x8 – Rods, water, tooling and spares
  • MAN 4x4 – Water truck and mud mixing
  • MAN 4x4 Dual Cab – Crew, Fuel, Water, Access platform and Tools
  • MAN 8x8 – Aux compressor and Booster package when required

Schramm T685/450

Reverse Circulation

RIGS

Drill D024

SPECIFICATIONS

1350cfm/500psi compressor, 13,500kgf Pullback, 8,500Nm Rotation torque

RIG CARRIER

V track

FEATURES
  • Sandvik DA 554 rod loader
  • Dual breakout system
  • Acoustic enclosure
  • Fire Suppression system
  • FOPS system for operator
  • Onboard booster compressor
SUPPORT TRUCKS

As required by project

Sandvik De820

RC, Diamond Core, Rotary

RIGS

D002

SPECIFICATIONS

1200cfm/500psi compressor, 14,920kgf Pullback, 9800Nm Rotation torque, Rotation speed 1200rpm

RIG CARRIER

Man 8x8

FEATURES
  • Rod spinner
  • Dual breakout system
  • Fire Suppression
  • Rod gate with interlocks
  • Winch overwind
  • Wireline/overshot slowdown system
  • Sandvik DA554 rod loader with radio remote
SUPPORT EQUIPMENT

As required by drilling project

Diamond Core

WALLIS Mantis 1000

Diamond Core, Rotary

RIGS

D014

SPECIFICATIONS

16,000kgf Pullback, 9800Nm Rotation torque, Rotation speed 1200rpm

RIG CARRIER

Man 8x8

FEATURES
  • Rod spinner
  • Dual breakout system
  • Fire Suppression
  • Rod gate with interlocks
  • Winch overwind
  • Rod handler for rotary/pre collar pipe
SUPPORT TRUCKS

As required by drilling project

Boart Longyear LF90

Diamond Core, Rotary

RIGS

D066, D067, D068, D069

SPECIFICATIONS

10,950kgf Pullback, 5322Nm Rotation torque, Rotation speed 1250rpm

RIG CARRIER

Tracks

FEATURES
  • Rod spinner
  • Dual breakout system
  • Fire Suppression
  • Rod gate with interlocks
  • FOP structure
  • Tramming radio remote
SUPPORT EQUIPMENT

As required by drilling project

Sandvik De710

Diamond Core

RIGS

D041

SPECIFICATIONS

9300kgf Pullback, 1454Nm Rotation torque, Rotation speed 1500rpm

RIG CARRIER

Tracks

FEATURES
  • Rod spinner
  • Fire Suppression
  • Rod gate with interlocks
  • Winch overwind
SUPPORT EQUIPMENT

As required by drilling project

Sandvik De820

RC, Diamond Core, Rotary

RIGS

D002

SPECIFICATIONS

1200cfm/500psi compressor, 14,920kgf Pullback, 9800Nm Rotation torque, Rotation speed 1200rpm

RIG CARRIER

Man 8x8

FEATURES
  • Rod spinner
  • Dual breakout system
  • Fire Suppression
  • Rod gate with interlocks
  • Winch overwind
  • Wireline/overshot slowdown system
  • Sandvik DA554 rod loader with radio remote
SUPPORT EQUIPMENT

As required by drilling project

WALLIS Mantis 500

Diamond Core, Rotary, Air Core

RIGS

D011 & D034

SPECIFICATIONS

12,600kgf Pullback, 5900Nm Rotation torque, Rotation speed 1000rpm

RIG CARRIER

Morooka MST 1500

FEATURES
  • Acoustic enclosure
  • Rod spinner
  • Dual breakout system
  • Fire Suppression
  • Rod gate with interlocks
  • Winch overwind
  • Wireline/overshot slowdown system
SUPPORT TRUCKS

As required by drilling project

Blast

Epiroc SmartROC D65-10XLF

Blasthole

Rigs

D039, D065

Specifications

995cfm/435psi compressor, 5,000kgf Pullback, 3831Nm Rotation torque

Rig Carrier

Track

Features
  • As per standard manufacture specs and site-specific requirements
  • Fire Suppression system
  • Hole navigation system
Support Trucks
  • LV

Rotary

WALLIS Mantis 1000

Diamond Core, Rotary

RIGS

D014

SPECIFICATIONS

16,000kgf Pullback, 9800Nm Rotation torque, Rotation speed 1200rpm

RIG CARRIER

Man 8x8

FEATURES
  • Rod spinner
  • Dual breakout system
  • Fire Suppression
  • Rod gate with interlocks
  • Winch overwind
  • Rod handler for rotary/pre collar pipe
SUPPORT TRUCKS

As required by drilling project

Boart Longyear LF90

Diamond Core, Rotary

RIGS

D066, D067, D068, D069

SPECIFICATIONS

10,950kgf Pullback, 5322Nm Rotation torque, Rotation speed 1250rpm

RIG CARRIER

Tracks

FEATURES
  • Rod spinner
  • Dual breakout system
  • Fire Suppression
  • Rod gate with interlocks
  • FOP structure
  • Tramming radio remote
SUPPORT EQUIPMENT

As required by drilling project

Sandvik De710

Diamond Core

RIGS

D041

SPECIFICATIONS

9300kgf Pullback, 1454Nm Rotation torque, Rotation speed 1500rpm

RIG CARRIER

Tracks

FEATURES
  • Rod spinner
  • Fire Suppression
  • Rod gate with interlocks
  • Winch overwind
SUPPORT EQUIPMENT

As required by drilling project

Sandvik De820

RC, Diamond Core, Rotary

RIGS

D002

SPECIFICATIONS

1200cfm/500psi compressor, 14,920kgf Pullback, 9800Nm Rotation torque, Rotation speed 1200rpm

RIG CARRIER

Man 8x8

FEATURES
  • Rod spinner
  • Dual breakout system
  • Fire Suppression
  • Rod gate with interlocks
  • Winch overwind
  • Wireline/overshot slowdown system
  • Sandvik DA554 rod loader with radio remote
SUPPORT EQUIPMENT

As required by drilling project

WALLIS Mantis 500

Diamond Core, Rotary, Air Core

RIGS

D011 & D034

SPECIFICATIONS

12,600kgf Pullback, 5900Nm Rotation torque, Rotation speed 1000rpm

RIG CARRIER

Morooka MST 1500

FEATURES
  • Acoustic enclosure
  • Rod spinner
  • Dual breakout system
  • Fire Suppression
  • Rod gate with interlocks
  • Winch overwind
  • Wireline/overshot slowdown system
SUPPORT TRUCKS

As required by drilling project

Grade Control

Schramm T685/450

Reverse Circulation

RIGS

Drill D024

SPECIFICATIONS

1350cfm/500psi compressor, 13,500kgf Pullback, 8,500Nm Rotation torque

RIG CARRIER

V track

FEATURES
  • Sandvik DA 554 rod loader
  • Dual breakout system
  • Acoustic enclosure
  • Fire Suppression system
  • FOPS system for operator
  • Onboard booster compressor
SUPPORT TRUCKS

As required by project

WALLIS 300RC

Reverse Circulation/Air Core

Rigs

D001, D004, D021, D026, D027, D047, D059, D060

Specifications

1260cfm/500psi compressor, 12,500kgf Pullback, 7500Nm Rotation torque

Rig Carrier

Man 6x6

Features
  • Wireless remote operation
  • Automated rod handling, rig up/down, semi-automated drilling
  • Electronic compressor control system, operator control over compressor pressure and volume
  • Acoustic enclosure
  • Dual breakout system
  • Fire Suppression
  • Programable isolation system
Support Trucks
  • MAN 6x6 – Water, Mud tank and mixing, tooling and spares
  • MAN 4x4 Dual Cab – Crew, Fuel, Water, Access platform and Tools
